Features
Level switches of the SPS range are used for monitoring and/or controlling fluid levels in vessels, with alarm and/or control of automatic refill units. The SPS is suitable for deployment with the TS1016/A007, TS2000, TS4000 and TS5000 range.
Advantages
- Monitoring of several levels with a single level switch possible
- Reliable and rugged technology
- For temperatures of up to 250°C
- Simple installation in the vessel from above
- Wide range of applications throughout the processing industry
Recommended applications
- Process industry
Functional description

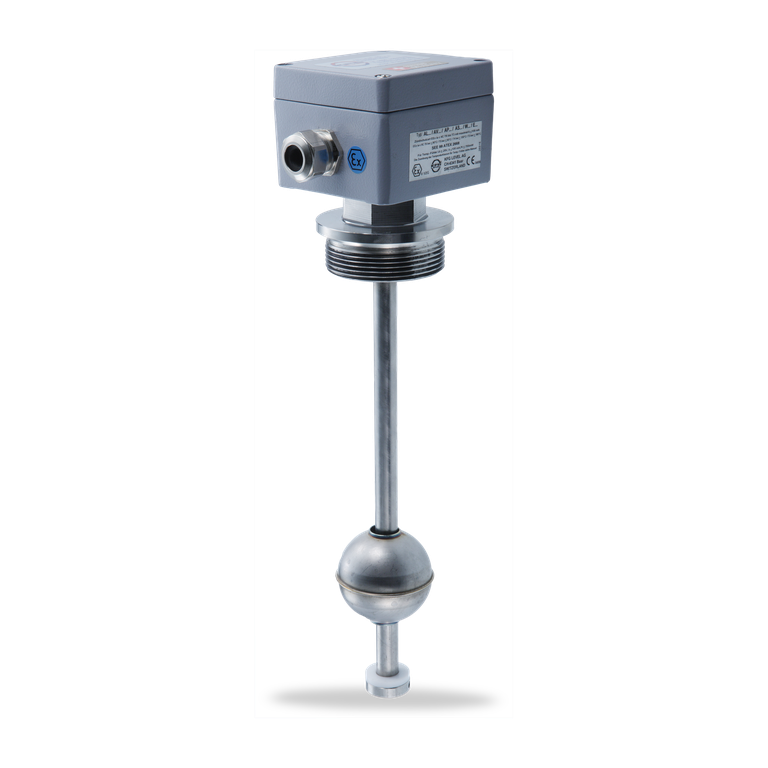

Level switches of the SPS range function by means of the floating ball principle. Float switches are actuators which are activated when a floating ball is moved by a fluid. The switch consists of a sliding tube with reed contact inserts and a floating ball fitted with a ring magnet on the inside. The floating ball rises when the fluid level in the vessel rises and the magnetic field of the ball actuates a reed contact through the wall of the sliding tube.
Product variants
| Designation | SPS |
SPS 2000/A002 |
SPS 2000/A103 |
SPS 2000/A201 |
SPS 2000/A202 |
SPS 2000/A800 |
SPS 2100/A101 |
SPS 2100/A002 |
|
|---|---|---|---|---|---|---|---|---|---|
| Type | |||||||||
| Float switch with 1 protective reed contact |
■ | ■ | ■ | ||||||
| Float switch with 2 protective reed contacts |
■ | ■ | ■ | ||||||
| Float switch with 3 protective reed contacts |
■ | ||||||||
| Float measuring transducer | ■ | ||||||||
| Switching points | |||||||||
| MIN level | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| MIN /MAX level | ■ | ||||||||
| MAX level | ■ | ■ | ■ | ■ | |||||
| Contact / signal function | |||||||||
| Change over switch | ■ | ■ | ■ | ■ | |||||
| Breaker | ■ | ■ | ■ | ||||||
| Norm. 16 mA, alarm 8 mA | |||||||||
| 4 ... 20 mA | ■ | ||||||||
| Malfunction | |||||||||
| 3.6 or 21 mA | |||||||||
| Harzardous duty approval | |||||||||
| Zone 1 (Ex ib IIC T4) | ■ | ||||||||
| Zone 1 (Ex d(e) IIC T4-T6) | ■ | ■ | |||||||
| Zone 0 (Ex c ia IIC T3-T6) | ■ | ■ | ■ | ■ | |||||
| Ex-certificate | |||||||||
| Certificate acc. ATEX | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| Allowable pressure (medium) | |||||||||
| 30 bar (435 PSI), Test pressure 40 bar (580 PSI) |
■ | ■ | ■ | ||||||
| 40 bar (580 PSI), Test pressure 52 bar (754 PSI) |
■ | ■ | |||||||
| 40 bar (580 PSI), Test pressure 60 bar (870 PSI) |
■ | ||||||||
| 100 bar (1450 PSI), Test pressure 130 bar (1,885 PSI) |
■ | ■ | |||||||
| Allowable temperature (medium) | |||||||||
| 120 °C (248 °F) | ■ | ■ | ■ | ■ | |||||
| 150 °C (302 °F) | |||||||||
| 180 °C (356 °F) | ■ | ■ | ■ | ||||||
| 250 °C (482 °F) | ■ | ||||||||
| Min. density of medium | |||||||||
| 0.7 g/cm³ | ■ | ■ | ■ | ■ | ■ | ■ | |||
| 0.4 g/cm³ | ■ | ■ | |||||||
| Material / weight | |||||||||
| Wetted parts | 1.4571 | 1.4571 | 1.4571 | 1.4571 | 1.4571 | 1.4571 | 1.4571 | 1.4571 | |
| Weight (approx.) | 1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
1.7 kg (3.75 lbs.) |
|
Other versions on request.
