SPL Level indicator
SPL Level indicator
SPL Level indicator
Features

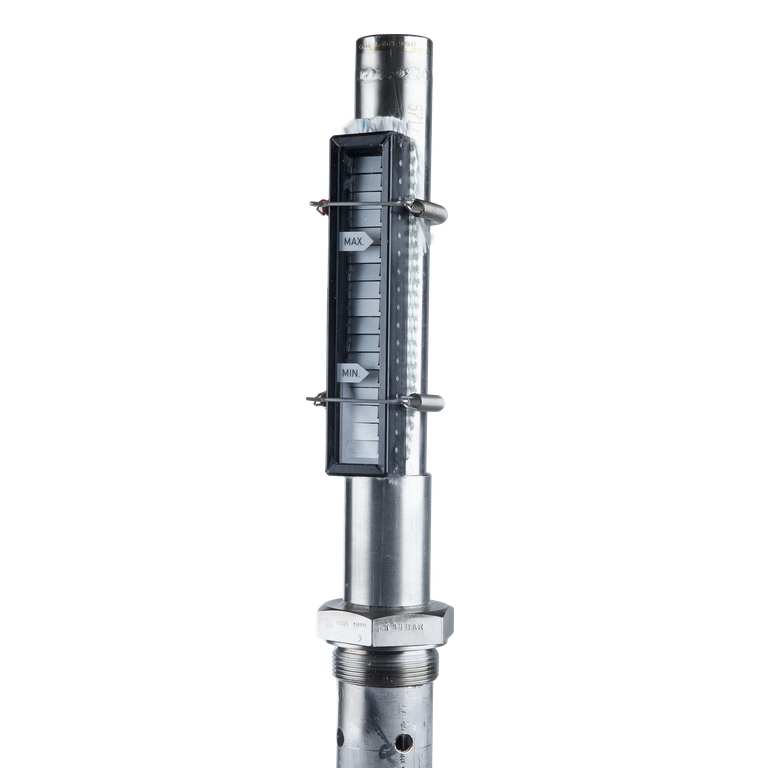

The tank-top mounted level indicators of the SPL range are used for continuous measuring, indication and monitoring of fluid levels. The level indicator consists of a vertical pipe with an integrated floating ball and a magnet system. The indicator strip can be positioned through 360° and is fixed to the outside of the vertical pipe.
Advantages
- Simple and reliable technology
- Magnet system: level indicator functions even if there is a power failure, as it requires no auxiliary power
- For temperatures of up to 200°C
- Installed in the vessel from above
Recommended applications
- Process industry
Functional description
The level indicator functions by means of a floating ball and a magnet system. The movable two-color metal plates on the indicator strip on the outside of the vertical pipe are actuated/turned by the magnet system.
Notes
Please quote the density of the buffer fluid when placing your order.
Product variants
| Technical data SPL2000 | |
|---|---|
| Designation | SPL2000 |
| Allowable pressure | 63 bar (914 PSI) |
| Allowable temperature | 200 °C (392 °F) |
| Min. density of medium | 0.7 g/cm3 |
| Materials / weight | |
| Wetted parts | 1.4571 |
| Floater | Titanium |
| Net weight (approx.) | 5 kg (11 lb) |
Version with SPK2000 contact unit for limit measurements available.
