SPI Measuring unit

Features

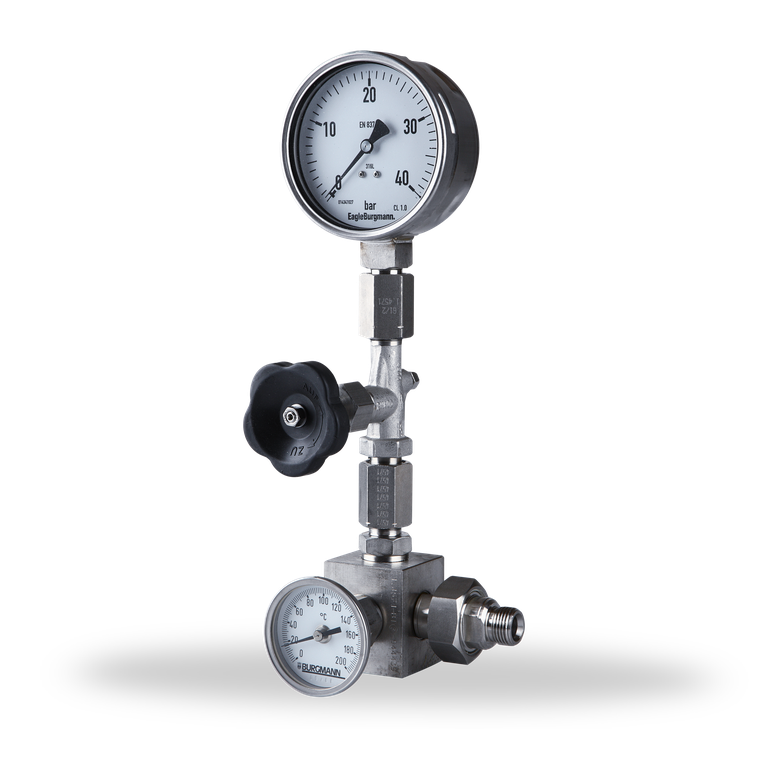

The measuring unit of the SPI range is used for visual monitoring of the operating temperature and the operating pressure. The measuring unit consists of a pressure gauge (NG 100) with a gauge shut-off valve in accordance with DIN 16270, a bi-metallic thermometer with protective sleeve, and a connector. The SPI is suitable for deployment with the TS2000, TS4000, TS5000 and DRU2063.

Advantages

  • Pressure range up to 100 bar
  • Temperature range up to 200°C
  • Pre-assembled measuring unit with pressure gauge shut-off valve for measuring pressure and temperature
  • Parts in contact with the medium are made of 1.4571: excellent media resistance for aggressive liquids
  • Wide range of applications throughout the processing industry


Product variants

Description SPI2000 SPI2000/
A003		 SPI2000/
A012		 SPI2000/
A013		 SPI2000/
A049		 SPI2063 SPI2100/
A002
Pressure range
0 ... 40 bar ■ ■ ■ ■ ■
0 ... 100 bar ■ ■
Temperature range
0 °C ... +120 °C ■
0 °C ... +200 °C ■ ■ ■ ■ ■ ■
Proximity contact acc. to NAMUR
MIN pressure ■ ■ ■ ■
MAX pressure ■ ■
MIN temperature ■
MAX temperature ■ ■ ■
Explosion protection
Category II 2 G D II 2 G D II 2 G D II 2 G D II 2 G D II 2 G D
Type of protection - - 1a - 1a - -
Temperature class TX TX T1-T6/T...°C TX T1-T6/T...°C - -
Material / weight
Wetted parts 1.4571 1.4571 1.4571 1.4571 1.4571 1.4571 1.4571
Net weight (approx.) 2.9 kg
(6.4 lb)		 2.9 kg
(6.4 lb)		 2.9 kg
(6.4 lb)		 2.9 kg
(6.4 lb)		 2.9 kg
(6.4 lb)		 2.9 kg
(6.4 lb)		 2.9 kg
(6.4 lb)

Please inquire about other measurement ranges and about pressure gauges and thermometers with contacts.
