HSH-D
Installation, details, options

For a larger view, please mouseover the image.

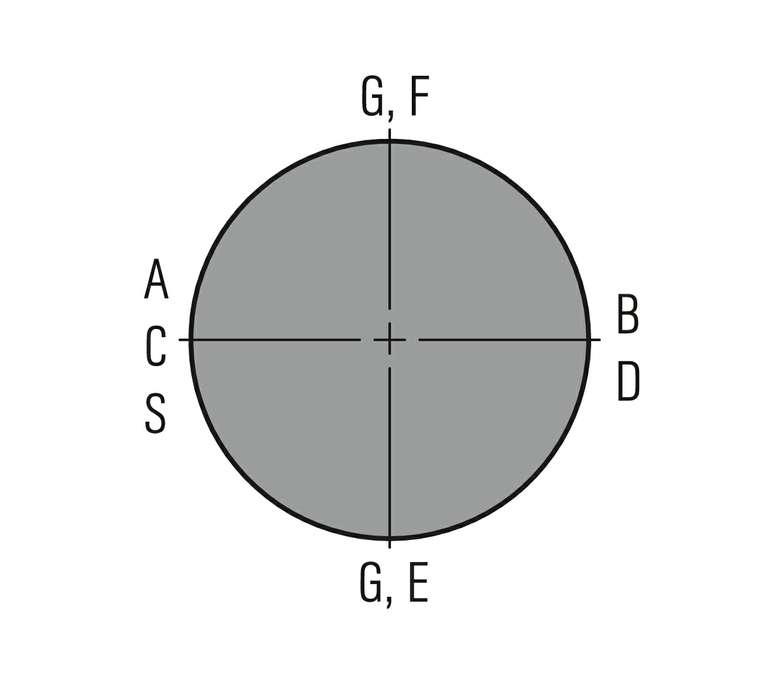

Supply connections
A Barrier fluid IN
B Barrier fluid OUT
C Drainage
D Leakage drain
E Cooling IN
F Cooling OUT
G Grease
S Flush
For a larger view, please mouseover the image.

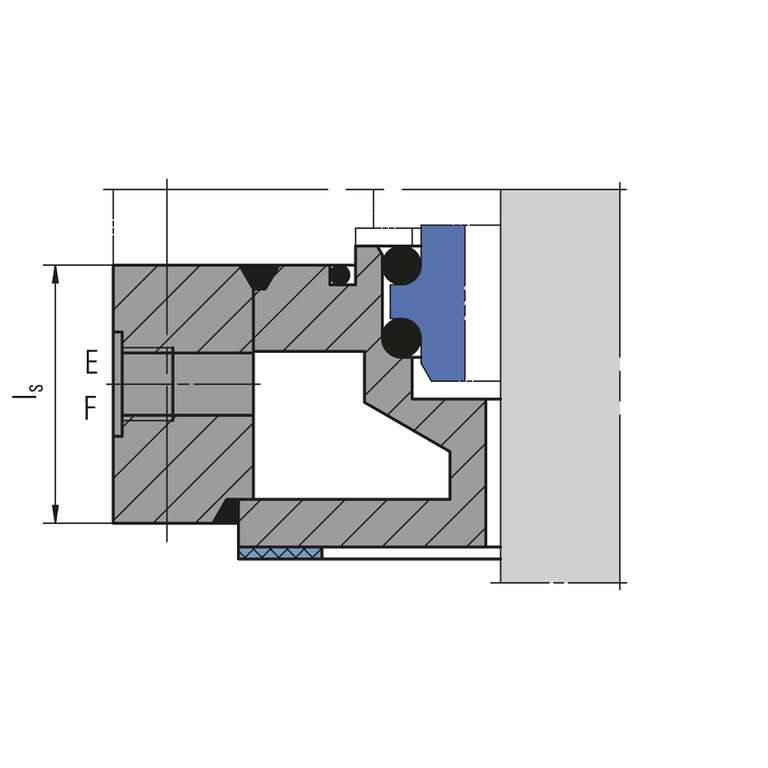

Cooling flange
Can be used alternatively as a heating flange.
For a larger view, please mouseover the image.

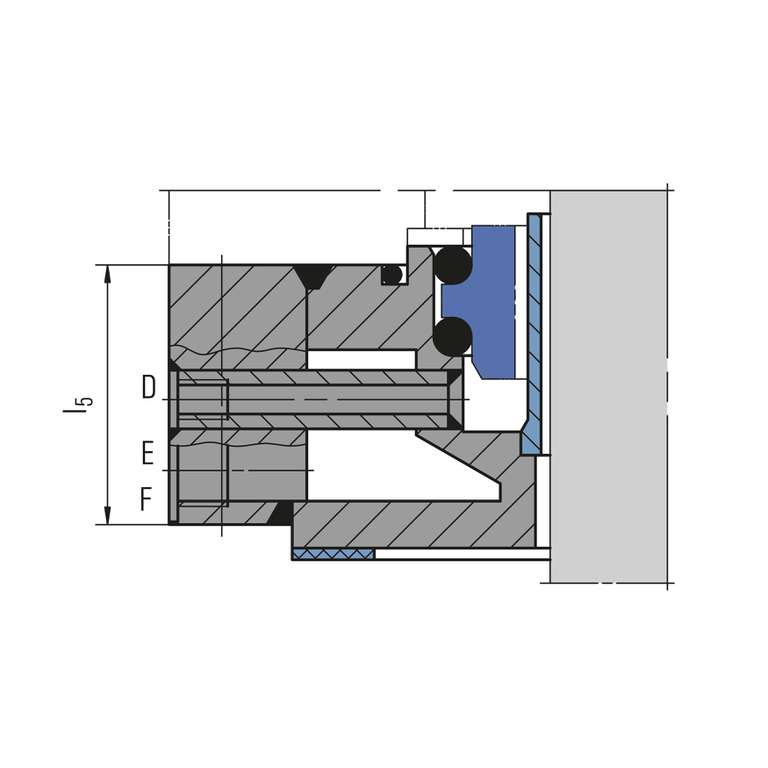

Leakage drain with cooling flange
Can be used alternatively as a flush or as a heating flange.
For a larger view, please mouseover the image.

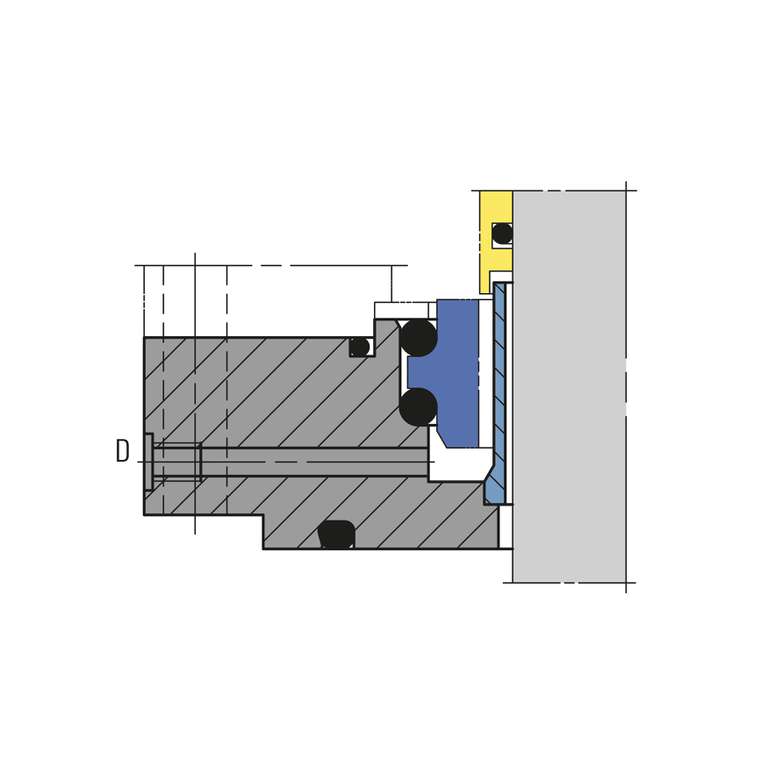

Leakage drain
Can be used alternatively as a flush.
For a larger view, please mouseover the image.

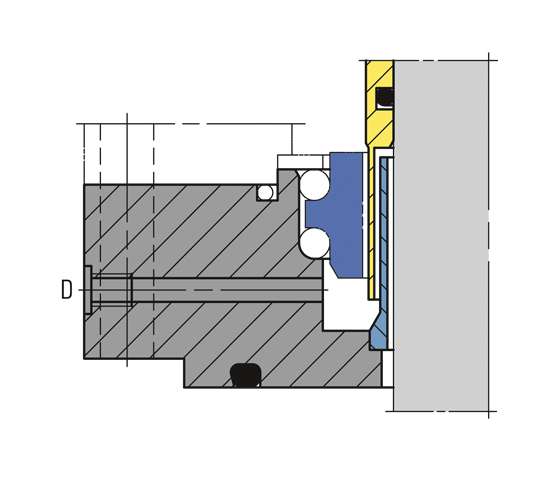

Polymerization barrier
Can be used alternatively as a leakage drain or a flush.
For a larger view, please mouseover the image.

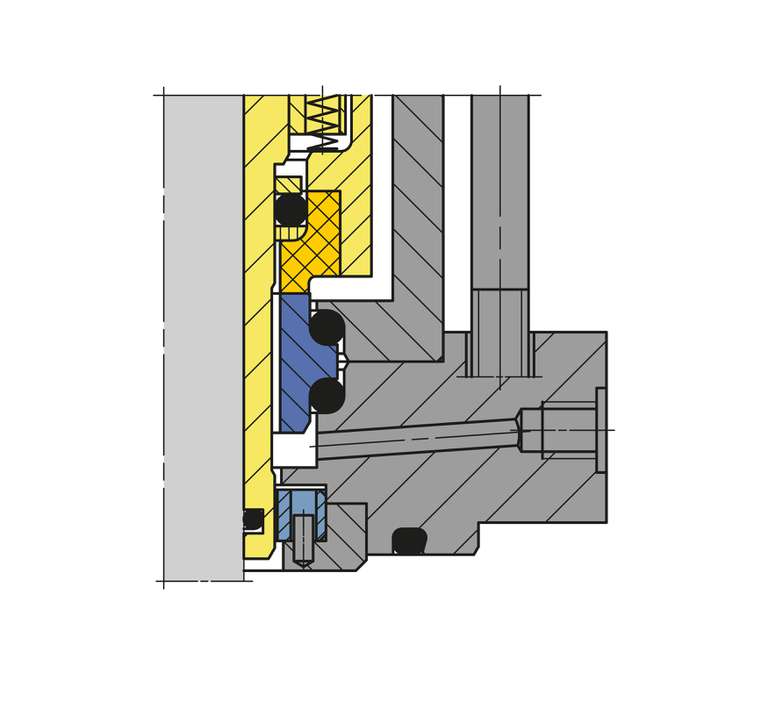

Flush
